Lok-it 1000/PS
Product features and benefits
- Compact design and short arc gap allows for smaller and brighter fixures
- Fast lamp replacement with one-touch rotate and lock base and socket design
- Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
- Consistent lumen output over the life of the lamp
- Improved ceramic base allows high voltage up to 35kV
- Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
- Power series offers enhanced performance features and versatility, including BRILLIANT lamps with high CRI and BLUE lamps that offer 7500K for bright white light
Areas of application
- Concert lighting
- Club & Disco
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment
Technical Data
General product information
| Product Number | 55022 |
| Product Name | LOKIT1000PS 10/CS 1/SKU |
| Ordering Abbreviation | Lok-it 1000/PS |
| Brand Name | OSRAM |
| Family Brand Name | Lok-it! |
| General Description | HTI, 1000 watt, metal halide, Power Series, PGJX36 base, 6000K Lok-it |
Electrical data
| Nominal Wattage | 1000 W |
| Nominal Voltage | 85 V |
| Current (A) | 12.2 A |
Light technical data
| Luminous Flux | 85000 lm |
| Light Center Length - LCL(mm) | 56 mm |
| Color Temperature | 6000 K |
| Average Rated Life | 750 h |
| Color Rendering Index | 95 |

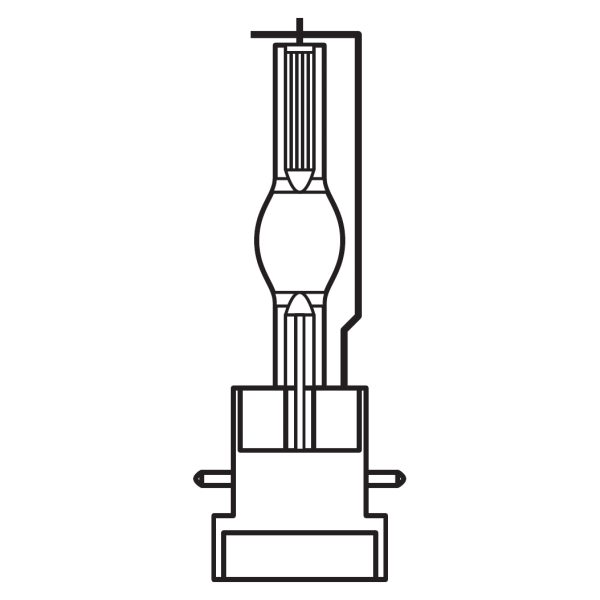

Physical attributes
| Bulb Shape | T |
| Length l1 max. (mm) | 112 mm |
| Length l2 max. (mm) | 104 mm |
| Diameter d (in) | 0.827 in |
| Diameter d (mm) | 21.00 mm |
| Distance a (mm) | 56 mm |
| Electrode Gap - cold (mm) | 5.5 mm |
| Base | PGJX36 |
Additional product data
| Operating Position | ANY |
| Maximum Base Temperature (ºC) | 450 C |
| Cooling | FORCED |
| Forced Cooling | REQUIRED |
| Hot Restart | NO |
| Lamp Type | SINGLE-END |
Packaging Information
| Product Number | EAN/UPC | Packaging | Quantity | Outside dimensions l x w x h |
Gross weight |
| 55022 | 4008321788368 | Shipping box (Case) | 1 | 12in x 3.2in x 4.5in | 0.5lb |
| 55022 | 4052899382947 | Shipping box (Case) | 1 | 4.5in x 3.2in x 12in | 0.5lb |
