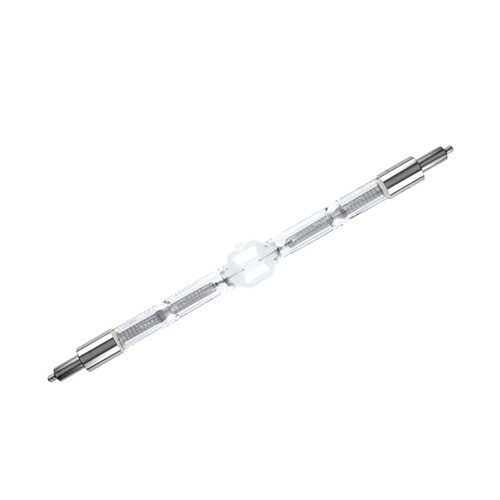

HMI 4000 W/DXS
Product family features
- Color temperature: approx. 6,000 K (Daylight)
- High color rendering index: Ra > 90
- Very bright with luminous flux up to 2.3 million lumen
- Very high luminous efficacy up to 100 lm/W
- Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
- Hot restart capability
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Technical Data
Electrical data
| Nominal Wattage | 4000.00 W |
| Nominal Voltage | 200 V |
| Lamp voltage | 200 V |
| Lamp current | 24.0 A |
| Norminal Voltage | 200 V |
Photometrical data
| Nominal luminous flu | 380000 lm |
| Color Rendering Index Ra | 90 |
| Colour temperature | 6000 K |
| Length | 405.0 mm |
Physical attributes
| Length l1 (mm) | 405.0 mm |
Dimensions & weight
| Diameter | 36.0 mm |
| Mounting length | 340.0 mm |
| Length | 405.0 mm |
Lifespan
| Lifespan | 500 h |
Additional product data
| Burning position | p15 |
| Base (standard designation) | SFa21 |
Capabilities
| Burning position | p15 |
Certificates & Standards
| EEI – Energy Label | B |
Packaging Information
| EAN/UPC | Packaging | Quantity | Outside dimensions l x w x h |
Gross weight | Volume |
| 4008321210203 | Shipping box (Case) | 1 | 561mm x 119mm x 136mm | 631.00g | 9.08dm³ |
