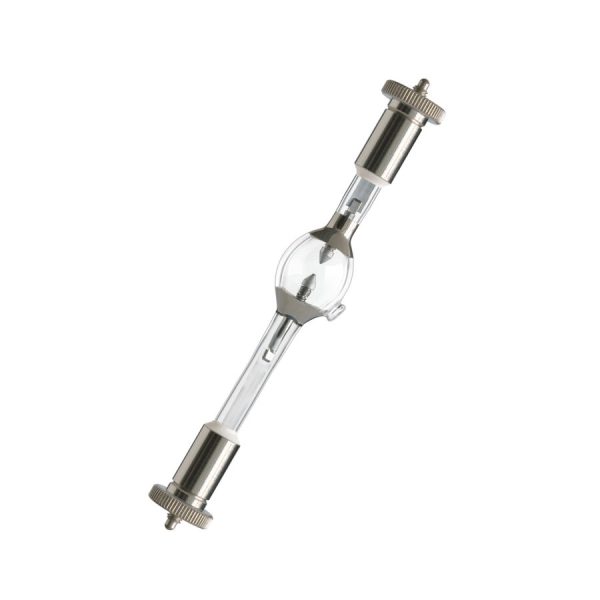

HBO 200 W/4
Product family features
- Multi-line spectrum
Product family benefits
- High radiance
- High radiant power in the UV and the visible range
Areas of application
- Fluorescence microscopy
- UV curing
- A variety of light guide applications
Safety advice
Because of their high luminance, UV radiation and high internal pressure (when hot) HBO lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Mercury is released if the lamp breaks. Special safety precautions must be taken. More information is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Technical Data
General product information
| Application | Other |
Electrical data
| Nominal Wattage | 200.00 W |
| Type of Current | AC |
| Rated Wattage | 200.00 W |
Photometrical data
| Nominal luminous flu | 9500 lm |
| Luminous Intensity | 950 cd(Typical Initial Value) |
Dimensions & weight
| Diameter | 17.0 mm |
| Length with base excl. base pins/connection | 102.00 mm(Maximum) |
| Mounting length | 102.0 mm(Maximum) |
| Light center length (LCL) | 40.0 mm(Distance from end of base to tip of anode(cold) |
Lifespan
| Lifespan | 200 h |
Additional product data
| Burning position | s20(Reference base pointing downwards(shorter shaft)) |
| Base Anode (Standard Designation) | SFc10-4 |
| Base Cathode (Standard Designation) | SFc10-4 |
Capabilities
| Burning position | s20(Reference base pointing downwards(shorter shaft)) |
Packaging Information
| EAN/UPC | Packaging | Quantity | Outside dimensions l x w x h |
Gross weight | Volume |
| 4050300506715 | Folding box (Case) | 1 | 165mm x 95mm x 48mm | 112.00g | 0.75dm³ |
| 4050300506722 | Shipping box (Case) | 10 | 521mm x 246mm x 372mm | 1154.00g | 11.10dm³ |
