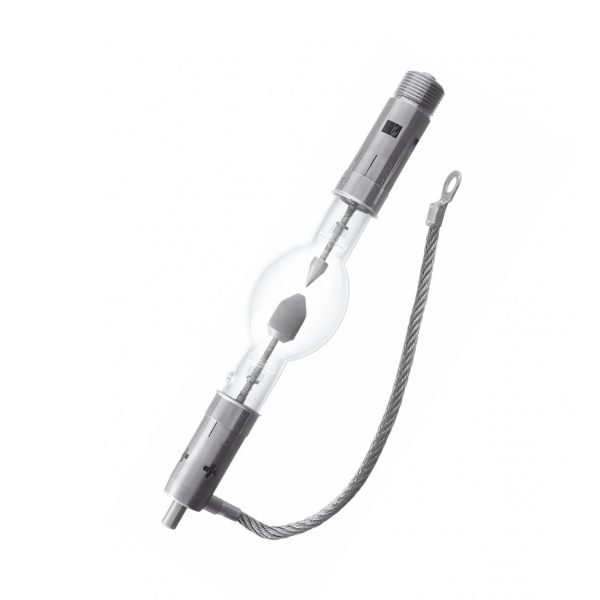

XSTAGE 7000W OFR

Product features and benefits

  • High luminance (point source) with rugged design for spotlight applications
  • Color temperature approximately 6000K – simulates daylight
  • Continuous spectrum in the visible range
  • High color rendering > 95
  • High arc stability
  • DC operation
  • Hot restart

Areas of application

  • Digital
  • Film
  • Spotlights
  • Searchlights
  • Solar Simulation

Technical Data

General product information
Product Number

69485

Product Name

XSTAGE7000WOFR 1/CS 1/SKU

Ordering Abbreviation

XSTAGE 7000W OFR

Brand Name

OSRAM

Family Brand Name

XBO

General Description

7000 Watts Xenon High Pressure Lamp

Application

Event & Architainment Lighting, Follow Spots, Sky Tracker

Product Remark

- OFR=Ozone Free
- This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp.
- Distance a is from end of base to the respective electrode tip (cold.
- With vertical operating position: anode(+) on top.

Electrical data
Nominal Wattage

7000 W

Nominal Voltage

40 V

Current (A)

160 A

Current Control Range (A)

110-165 A

Type of Current

DC

Light technical data
Luminous Flux

330000 lm

Average Luminance (cd/cm2)

120000 cd/cm2

Luminous Intensity (cd)

33000 cd

Luminous Area (mm)

2.0 x 7.0 mm

Light Center Length - LCL(mm)

162.6 mm

Color Temperature

6000 K

Average Rated Life

650 h

Average Rated Life - Horizon (hr)

1000 hr

Physical attributes

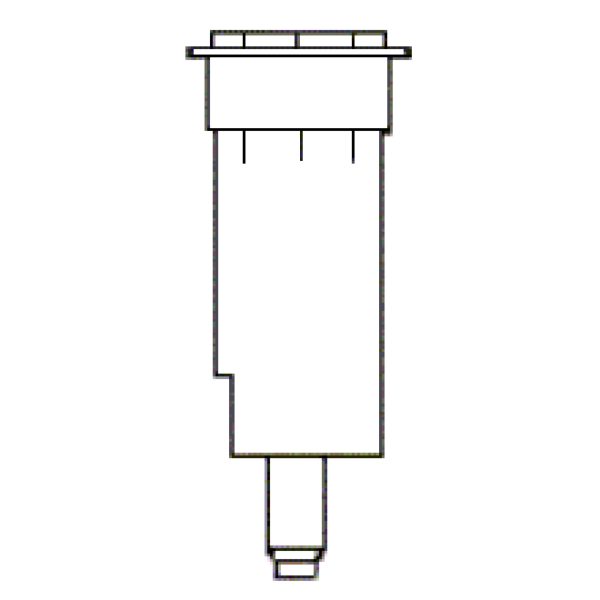

Base Anode

SFaX28-27

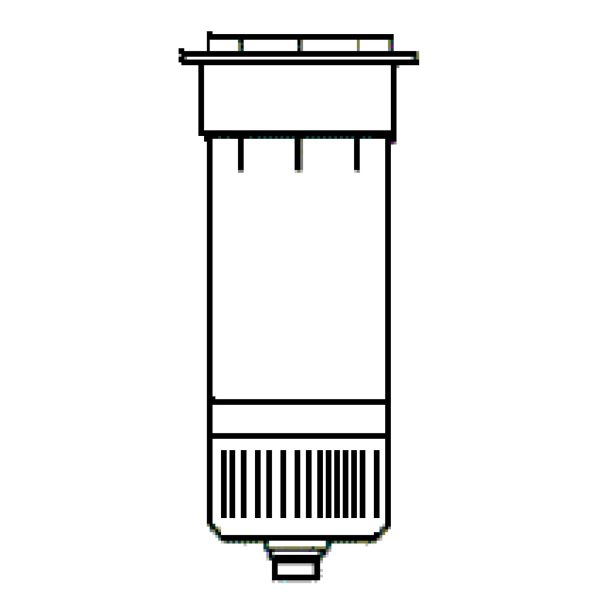

Base Cathode

SFc28-27

Bulb Shape

KO156

Maximum Overall Length (mm)

405 mm

Length l1 (mm)

405 mm

Length l1 max. (mm)

405 mm

Length l2 (mm)

363 mm

Length l2 max. (mm)

362 mm

Diameter d (in)

2.756 in

Diameter d (mm)

70.00 mm

Distance a (mm)

162.5 mm

Electrode Gap - cold (mm)

8 mm

Reflector Coating

70.00

Additional product data
Operating Position

s90

Maximum Base Temperature (ºC)

230 C

Cooling

Fan

Forced Cooling

Required

Hot Restart

Yes

Class

C (gas)

Packaging Information

Product Number EAN/UPC Packaging Quantity Outside dimensions
l x w x h
Gross weight
69485 4008321288851 Shipping box (Case) 1 23.2in x 9in x 9.2in 4.5lb
