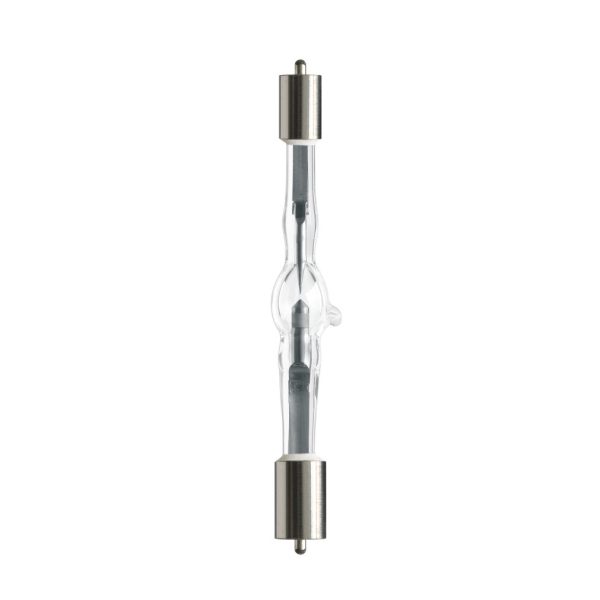

XBO 150W/CR OFR
Product features and benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering > 95
- High arc stability
- DC operation
Areas of application
- Endoscopy
- Microscopy
- Surgical Headlamps
- Fiber Illumination
- Solar Simulation
- Imaging & scanning
Technical Data
General product information
| Product Number | 69237 |
| Product Name | XBO150WCROFR 18V 10/CS 1/SKU |
| Ordering Abbreviation | XBO 150W/CR OFR |
| Brand Name | OSRAM |
| Family Brand Name | XBO |
| General Description | 150 watt, xenon short arc, double-ended |
| Application | Reprography |
| Product Remark |
- OFR=Ozone Free - s (Operating Position) = Vertical, base down - p (Operating Position) = Horizontal - Magnetic arc stabilization required for p15 operating position. - This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp. - Distance a is from end of base to the respective electrode tip (cold. - With vertical operating position: anode(+) on top. - Lamp is suitable for Crosfield color scanner (CR = Crosfield). |
Electrical data
| Nominal Wattage | 150 W |
| Current (A) | 8.5 A |
| Type of Current | DC |
Light technical data
| Luminous Flux | 2900 lm |
| Average Luminance (cd/cm2) | 20000 cd/cm2 |
| Luminous Intensity (cd) | 290 cd |
| Luminous Area (mm) | 0.5 x 1.6 mm |
| Light Center Length - LCL(mm) | 57 mm |
| Color Temperature | 6000 K |
| Average Rated Life | 3000 h |
| Average Rated Life - Horizon (hr) | 1200 hr |
| Color Rendering Index | 98 |
Physical attributes

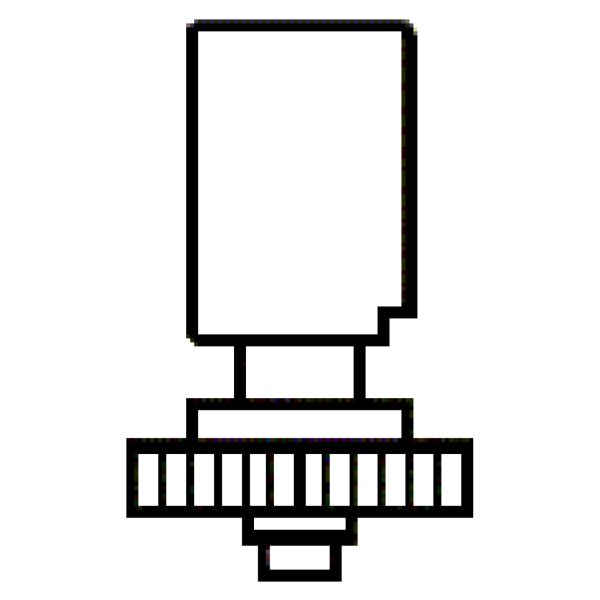

| Base Anode | SFc12-4 |

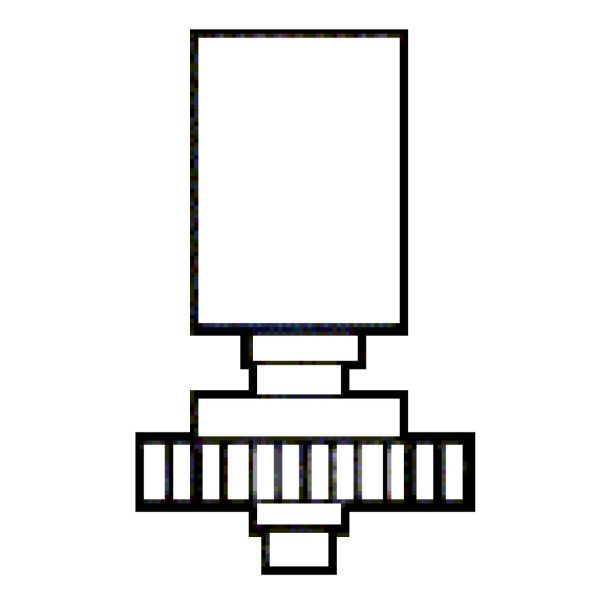

| Base Cathode | SFcX12-4 |
| Bulb Shape | KO131 |

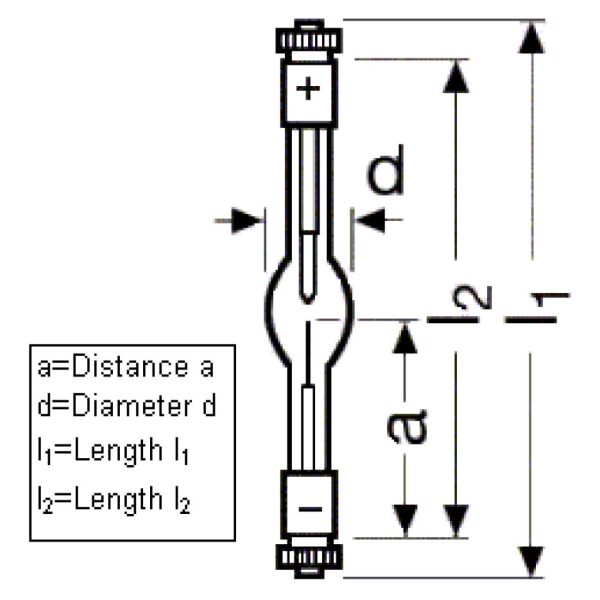

| Maximum Overall Length (mm) | 150 mm |
| Length l1 (mm) | 150 mm |
| Length l1 max. (mm) | 150 mm |
| Length l2 (mm) | 127 mm |
| Length l2 max. (mm) | 127 mm |
| Diameter d (in) | 39.331 in |
| Diameter d (mm) | 999.00 mm |
| Distance a (mm) | 57 mm |
| Reflector Coating | 999.00 |
Additional product data

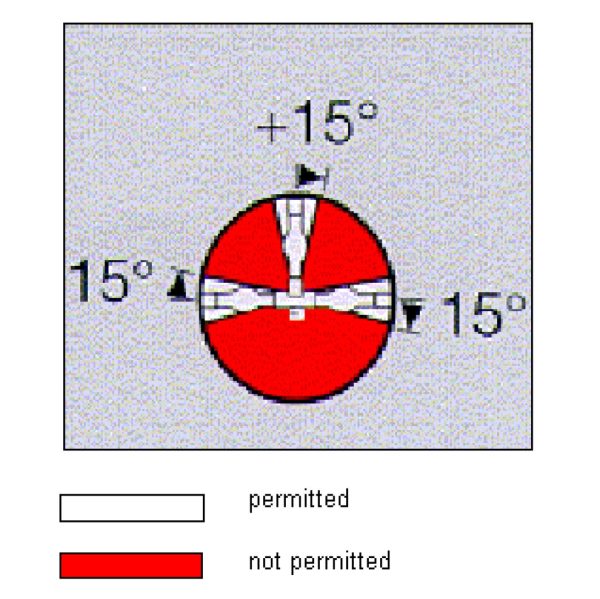

| Operating Position | s15 p15 |
| Maximum Base Temperature (ºC) | 230 C |
| Forced Cooling | Required |
| Hot Restart | Yes |
| Class | C (gas) |
| Lamp Type | DOUBLE ENDED |
| Magnetic Arc Stabilization | Required |
Packaging Information
| Product Number | EAN/UPC | Packaging | Quantity | Outside dimensions l x w x h |
Gross weight |
| 69237 | 4050300508788 | Folding box (SKU) | 1 | 6.5in x 3.7in x 1.9in | 0.4lb |
| 69237 | 4050300508795 | Shipping box (Case) | 10 | 10.2in x 12.4in x 8.9in | 4.5lb |
