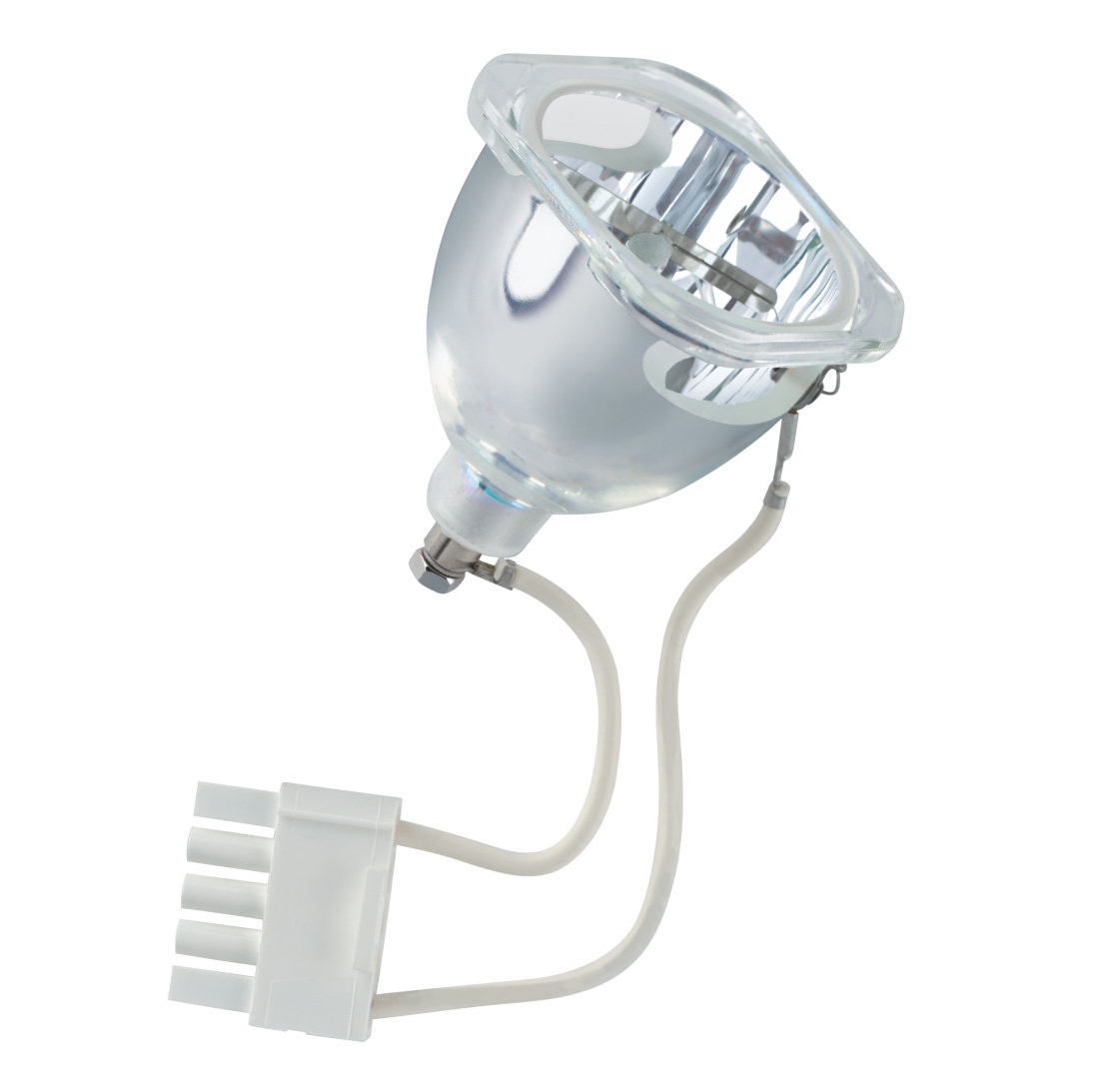

HXP R 120 W/17 C
Product family features
- AC operation with square-wave current
Product family benefits
- Very high luminance
- Elliptical reflector for efficient focusing of the light
- Long lamp life
Safety advice
Because of their high luminance, UV radiation and high internal pressure in the hot state HXP lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Mercury is released if the lamp breaks. Special safety precautions must be taken. More information is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Technical Data
General product information
| Application | Other |
| Product Remark | To be operated with PT-VIP 2AC/380 O1 DIM 120 VS25 |
Electrical data
| Nominal Wattage | 120.00 W |
| Type of Current | AC |
| Lamp wattage | 120 W |
| Lamp voltage | 70…95 V |
| Lamp current | 1.5 A |
Light technical data
| Focal Length | 17.3 mm |
Dimensions & weight
| Diameter | 65.0 mm |
| Length with base excl. base pins/connection | 77.00 mm |
Lifespan
| Lifespan | 2000 h |
Additional product data
| Cooling | Forced |
| Burning position | p20 |
Capabilities
| Burning position | p20 |
Packaging Information
| EAN/UPC | Packaging | Quantity | Outside dimensions l x w x h |
Gross weight | Volume |
| 4050300786476 | Shipping box (Case) | 50 | 521mm x 246mm x 372mm | 5890.25g | 47.68dm³ |
